License Plate Recognition (LPR)
Automatic Number Plate Recognition (ANPR)
Benefits
Dahua Vehicle Entrance & Exit Management Solution Dahua’s Vehicle Access Management Solution features automatic license plate recognition capability, preventing unauthorized vehicle entry to enhance security and prevent incidents. The system ensures authorized drivers enjoy smoother access experiences. Additionally, video recording facilitates secure passage while simplifying record maintenance and search processes.
Efficient Verification
Automatic license plate recognition can help prevent entry of unauthorized vehicles.
Non-stop Access Experience
The barrier, equipped with ANPR technology that recognizes license plates within 0.X seconds (seconds), enables accurate and efficient vehicle access, ensuring a smooth driving experience.
Visual Record & Search
Visual confirmation of security alerts combined with systematic vehicle access oversight ensures secure passage while simplifying record maintenance and retrieval procedures.
Topology & Advantages

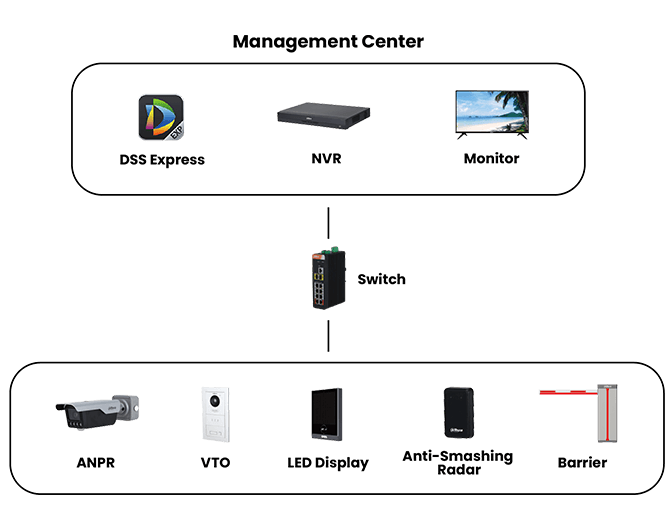

System Topology Description The solution features a centralized Management Center powered by DSS Pro Software for real-time monitoring and control. It utilizes a robust network topology where ANPR cameras, LED displays, VTO video intercoms, and barriers are interconnected via high-speed Switches. This architecture ensures seamless data transmission between the front-end capture devices and the back-end management system, supporting both automatic and manual verification modes for maximum security and efficiency.
Accurate and Efficient
Self-developed plate recognition algorithm with a capture rate >99% and recognition accuracy >98%. The recognition time is within 0.8 seconds, ensuring rapid processing.
Secure and Flexible Control
Supports blocklist alarms with customizable voice audio and visual deterrents. The system allows for double verification (vehicle plate + face) and includes a remote controller for the barrier to boost efficiency during rush hours.
Reliable and Durable
Features IP67 dustproof and waterproof protection and an IK10 impact rating with a sturdy aluminum alloy body. The system is designed to adapt to extreme environments (rain, snow, fog) with an intelligent heating module, ensuring stable operation in wide temperature ranges.

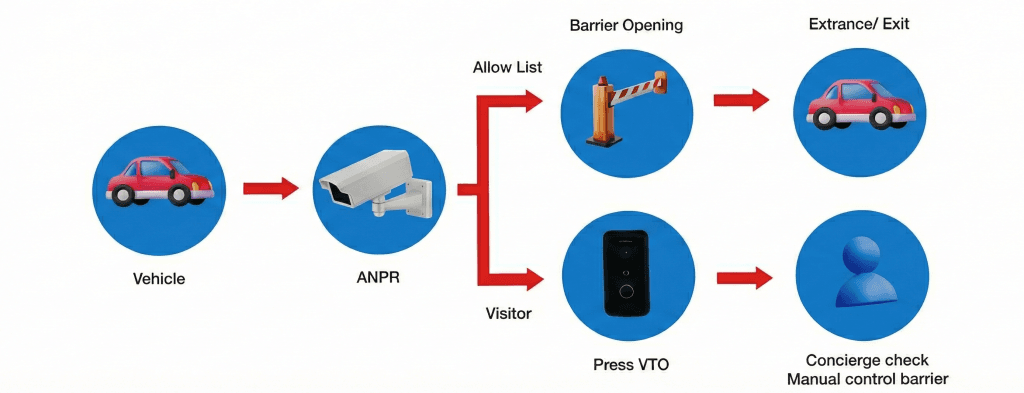

Work Flow
Authorized vehicles are detected by ANPR and granted automatic barrier access. Visitors press the VTO for manual identity verification, and the concierge opens the barrier upon approval.
Process Logic:
Scenario A (Authorized Vehicle): Vehicle → ANPR Detection → Check Allow List → Barrier Opening → Entrance/Exit.
Scenario B (Visitor): Visitor → Press VTO → Concierge Check (Manual control barrier) → Barrier Opening → Entrance/Exit.
Product List
ITC413-PW4D Series
Dahua Access ANPR Camera
- High-performance CMOS image sensor and processor that supports continuously extracting metadata 24/7.
- Adopts intelligent deep learning algorithms and supports recognition of unlicensed vehicles and the type, brand and color of vehicles.
- Built-in signal port, data port, communication port and remote controllers assist in controlling external devices such as entry and exit barriers.
- Built-in LED for simplified installation and commissioning.
- All-in-one structure with junction box and bracket, and it is also low power consumption.
- IP67 and IK10 rated.
- Supports intrusion and loitering detection and triggers light and voice alarms when perimeter events occur to actively deter targets. Custom audios can also be imported and edited.
- Easily adapts to scenarios through its motorized vari-focal lens
ITSXS-1201-44
Entrance and Exit LED Display
- Highlighted LED module displays in 64 × 64 lattice diagram (4.75 mm pixel pitch) with adjustable brightness
- Supports voice broadcast
- 3 built-in LED illuminators with adjustable brightness
- Supports screen bad pixel (abnormal LED) detection
- Supports online update of program and character library
- Conforms to EMC CLASS A standards
- Conforms to ROHS standards
Introduction to DSS (Dahua Security System)
A Unified Security Platform for Comprehensive Management
DSS (Dahua Security System) is a unified security platform designed by Dahua Technology. It features a simplified User Interface (UI) and User Experience (UE) to greatly improve ease of use for operators.
Adopting an application-based design concept, DSS offers unified management through its “3+2+1” scheme, covering six major business scenarios to satisfy diverse customer needs:
3 Major Security Applications: Monitoring Center, Event Center, and DeepXplore.
2 Major Object Management Modules: Access Management and Parking Lot Management.
1 Major Maintenance Management Module: Maintenance Center.
Key Features:
Unified Management: Integrates video surveillance, access control, video intercoms, alarm controllers, POS, radar, and AI features such as facial recognition and Automatic Number Plate Recognition (ANPR).
Flexible Scalability: Available in different versions to suit various needs, including DSS Express (a pay-as-you-go system for SMBs) and DSS Professional (a high-availability system for large-scale enterprises).
Intelligent Operations: Supports rich event sources, real-time alarm linkage, visualized parking management, and intelligent inspection to help users respond quickly and effectively to security situations.
